JSON parser

Latest version: 5.0.1 build 1205. December 12, 2025.

The JSON Data Parser plugin is designed for technical professionals who need to extract structured JSON data from a continuous data flow and make it available as parser variables for further processing. The plugin works together with Advanced TCP/IP Data Logger, Advanced Serial Data Logger, and Data Logger Suite. It reads JSON fragments from an incoming stream, parses them according to user rules, and exports selected values as typed parser items. These items can then be used in data export plugins to transfer data to SQL databases, files, Excel, CSV, or other destinations.

Some common uses are reading JSON messages from HTTP-based APIs over TCP, MQTT topics, or log files that are formatted in JSON. For instance, you can accept HTTP POST requests that contain JSON sensor measurements, or consume MQTT topics with device status updates. The plugin extracts the JSON content from any surrounding unnecessary bytes and creates internal variables such as, for example, temperature, device_id, or STATUS. This approach makes it easier to build reliable automation, control or logging solutions for important values.

Download  | PDF manual

The plugin focuses on three main tasks. First, it detects and extracts JSON structures from mixed data streams that may contain headers, delimiters, or other content. Second, it parses and filters JSON objects based on user-defined rules, including root object selection, name-based filtering, and maximum depth. Third, it converts the parsed values into specific data types and exports them as parser items that can be used in standard export plugins. This data processing method helps to normalize complex incoming JSON payloads and present them as a flat set of usable values.

JSON data can arrive from several sources. With Advanced TCP/IP Data Logger, it often comes from HTTP servers, REST services, or custom TCP services. With Data Logger Suite, it can come from MQTT brokers, text log files, or combined sources. Whatever channel the data comes in through, the JSON Data Parser plugin always handles it the same way. The JSON data and JSON values tabs let you set the rules. The parser variables you create can then be used in all available data filter and export plugins.

Core Parsing Concept and Root Object Selection

At the center of the configuration is the Root object name setting. This is a case insensitive name of the JSON node that contains all values that you want to export. For example, if you specify RootNode, the plugin will scan each JSON structure for an object named RootNode and will export only its properties and nested objects. This is useful when the incoming JSON contains multiple top level objects or includes diagnostic or metadata sections that you do not want to process.

Consider the following incoming JSON fragment inside a common data flow:

{
 "root1":{
  "id":2,
  "int":123,
  "float":321.01
 },
 "root2":{
  "id":2
 }
}

If you set Root object name to root1, the plugin will parse and export only the values under root1. That means that properties id, int, and float will become parser variables, while the root2 object will be ignored. It's possible for the plugin to export values from all top-level objects it finds if you leave the root object blank, but using a root object name usually makes mappings and export structures more clear.

Integration Example with Advanced TCP/IP Data Logger

You could use HTTP to connect two systems so that Advanced TCP/IP Data Logger can listen on a TCP port and get JSON messages from an IoT gateway. Each HTTP request body contains a JSON object with sensor data:

POST /data HTTP/1.1
Host: logger.local
Content-Type: application/json

{
 "sensor":{
  "id":"SENS01",
  "timestamp":"2025-01-02 08:00:00",
  "temperature":23.4,
  "humidity":45.8
 }
}

The logger captures the full HTTP request from a TCP/IP source. In the JSON Data Parser plugin, set Root object name to sensor. Enable Add parent name to value name if you want variable names like SENSOR.ID, SENSOR.TEMPERATURE, and SENSOR.HUMIDITY (along with Export names in uppercase).

In the JSON values list, define rules such as:

• Name: timestamp, Type: Property, Action: Parse, Data type: DateTime
• Name: temperature, Type: Property, Action: Parse, Data type: Float
• Name: humidity, Type: Property, Action: Parse, Data type: Float

When a message arrives at 2025-01-02 08:00:00, the plugin can produce a set of parser items like:

DATE_TIME_STAMP = 2025-01-02 08:00:00
SENSOR.ID = "SENS01"
SENSOR.TIMESTAMP = 2025-01-02 08:00:00
SENSOR.TEMPERATURE = 23.4
SENSOR.HUMIDITY = 45.8

These parser items can be forwarded to an SQL database using an export plugin. You can map DATE_TIME_STAMP to a timestamp column, SENSOR.ID to a device identifier column, and the temperature and humidity fields to numeric columns.

Key Features

• Flexible root object selection to target only the relevant sections of complex JSON documents.
• Extract the necessary value only from a whole JSON object.
• Configurable timeout and maximum depth settings for robust processing of fragmented or nested data.
• Name formatting options that add parent names and convert identifiers to uppercase for consistent variable naming.
• Rules to parse and ignore JSON data packets
• Data type definition for JSON values.
• Character translation to clean incoming data from non-printing characters and control codes before parsing.

Brief summary about JSON data parser

The JSON Data Parser plugin provides a controlled and efficient way to turn raw JSON streams into structured variables inside Advanced TCP/IP Data Logger, Advanced Serial Data Logger, and Data Logger Suite. It might help you get better at the data collection tasks you do in IoT and business areas.

Download  | PDF manual

How to enable this plugin

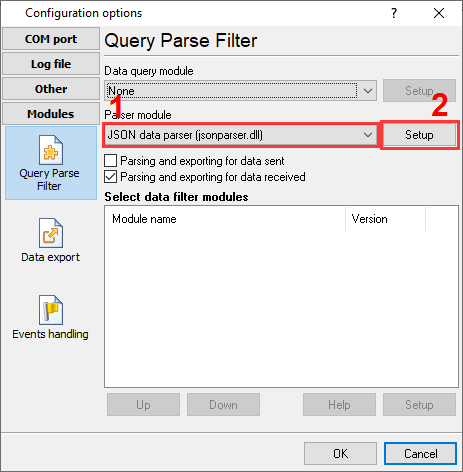

The figure below shows how to select the plugin on the "Modules" page.

How to configure the plugin

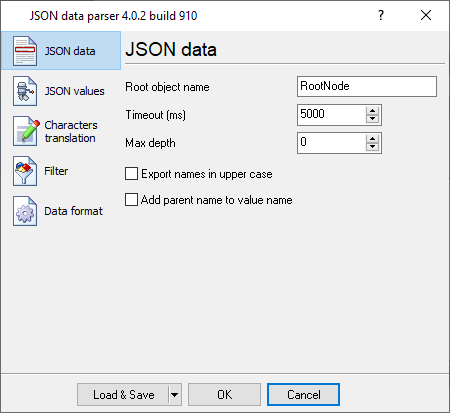

The figure below shows how to configure the plugin. Please, look at the documentation for the full description of all settings.
