Data Logger Suite: Logging and Monitoring
Replacing alarm line printers. Custom events for alarms and notifications.
We want replace our alarm line printers in our Control Centre and setup audio notification on ALARM messages.
- Data Logger Suite: Logging and Monitoring Professional, Enterprise, or trial version;
- Data timeout, Events generator, Events notification
It is assumed that:
The program is installed successfully.
This task can be solved using alert sounds that will be played when the program detects the specified signature in a printed message. You may use a combination of two plugins: Event generator and Events notification.
Event generator - the plugin can generate an event if it will find some text in the parsed data.
Note: because this plugin works with parser variables, therefore the parser should work correctly and extract data packets from a common data flow;
Event notification - executes specified actions for one or more events. For example, it can play sounds or send emails.
1. Create a configuration in our logger by clicking the "Plus" button and configure the connection:
1.1 RS232 printer - select a COM port and configure the hardware flow control (fig. 1,2).
1.2 RS232 printer via the RS232-Ethernet converter - the settings depend on the converter and its operation mode. If the converter can create a virtual COM port on a target computer then you may configure a typical COM connection. If the device converts an RS232 stream to a pure TCP stream then you should configure the TCP connection.
1.3 Network line printers - the default TCP port for the network printer is 9100 (fig. 3). Our software should work as the TCP server.

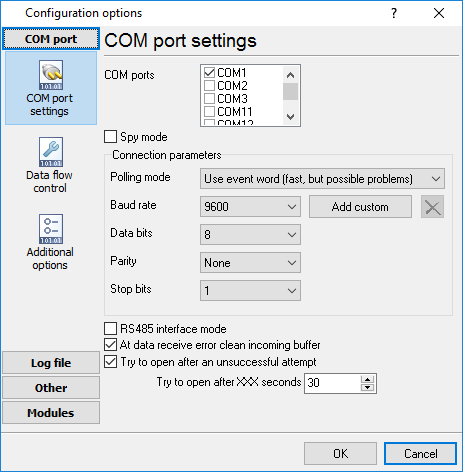

Fig.1. COM port settings

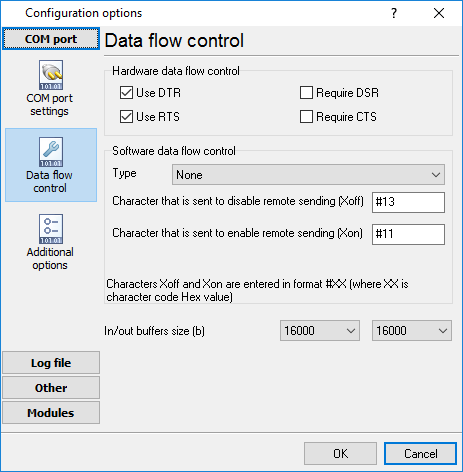

Fig.2. Hardware flow control settings

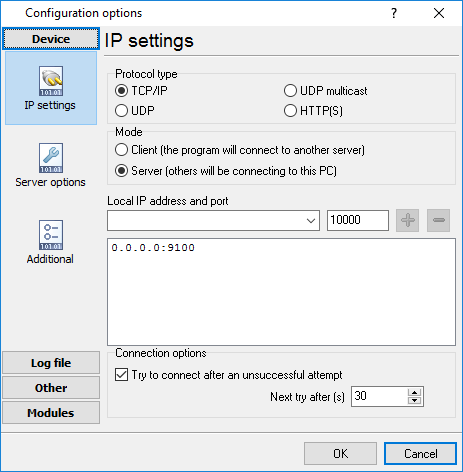

Fig.3. TCP settings
2. Configure a log file.

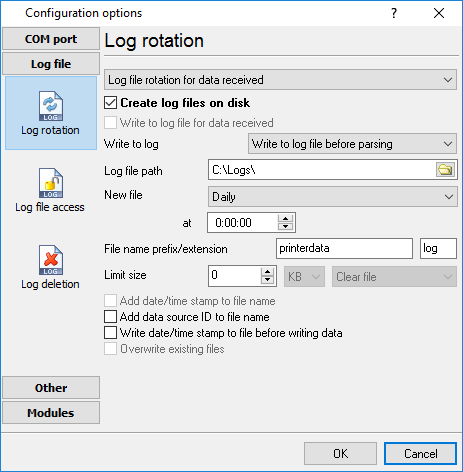

Fig.4. Log file settings
3. Select and configure the parser. To configure the parser click the "Setup" button near it.

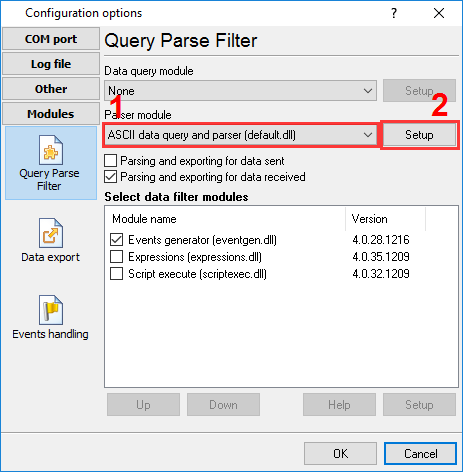

Fig. 5. Plugins
The expression "#0D" means that the each line ends with the <CR> ASCII character. If it will not work you may try "#0A" (ASCII <LF>). Leave other parser settings unchanged.

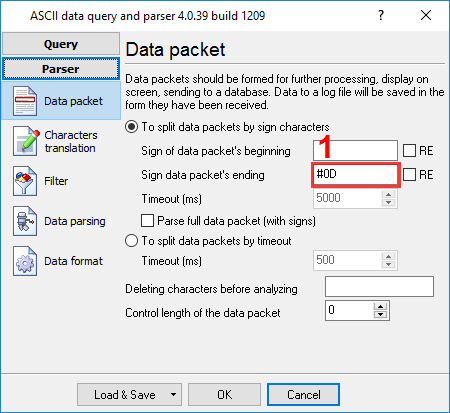

Fig. 6. ASCII Data Parser
4. Select (fig. 5) and configure the "Events generator" plugin (fig. 7). The "ALARM" event will be triggered if a line will contain the specified text. In this example the event will be generated for lines with the "Offnormal" text.

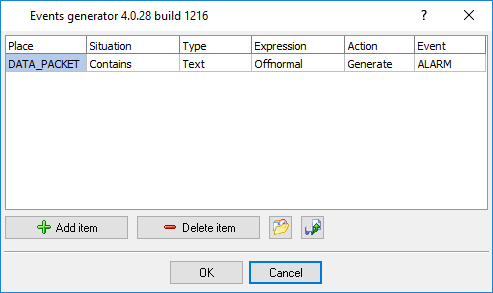

Fig.7. Events generator
5. Select and configure the "Events notification" plugin.

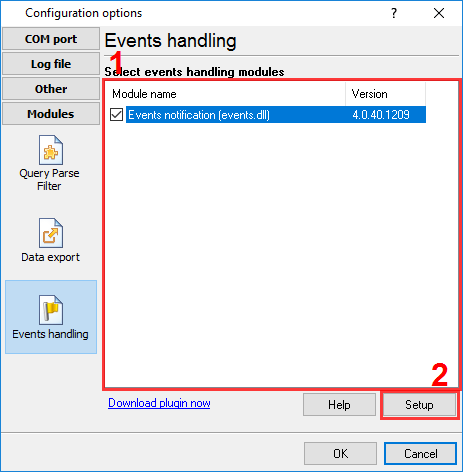

Fig.8. Events notification plugin

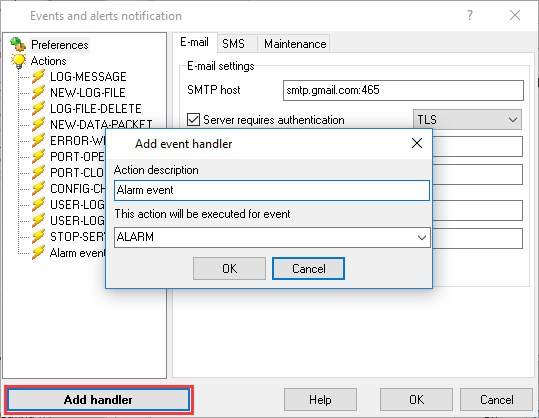

5.1 Add the new event handler.
Fig.9. Adding the new event handler
5.2 Simple notification - play a sound.

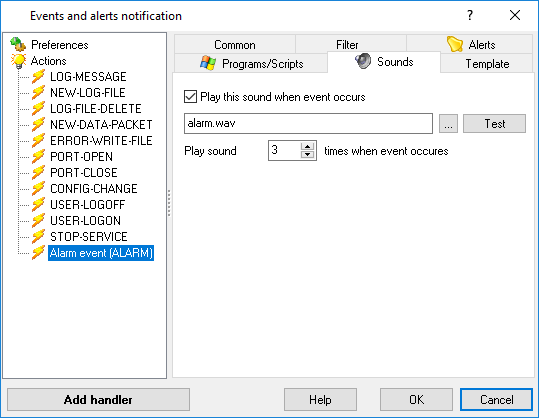

Fig.10. Configuring the notification
Then click the "OK" button and save all settings. As from now the program will play the sound for each alarm.
- Redirecting COM port data to anoter COM port after transformation Tags: filter plugins, log files. Plugins: Expressions, Data redirecting
- Detecting data timeout using our data loggers and sending alert emails Tags: filter and events plugins, event notification. Plugins: Data timeout, Events notification
- Replacing alarm line printers. Custom events for alarms and notifications. Tags: generating custom events. Plugins: Events generator, Events notification, Data timeout
